Fender Blues Junior Guitar Amp Repair

I see quite a few Fender Blues Juniors in the workshop for repair; not that they are unusually unreliable, it’s just there are a lot of them out there!

However you do see many of the same faults occurring, so here’s some photos highlighting these from a recent repair.

Firstly, like many amps that use EL84s, the power valves are run very hot. This isn’t helped by Fender wiring their European export amps for 230 VACmains , rather than 240 VAC. This means that all the Fender amps sent to UK run on higher voltages than they should.

I always rewire any Fender amps I have in the workshop to UK voltage.

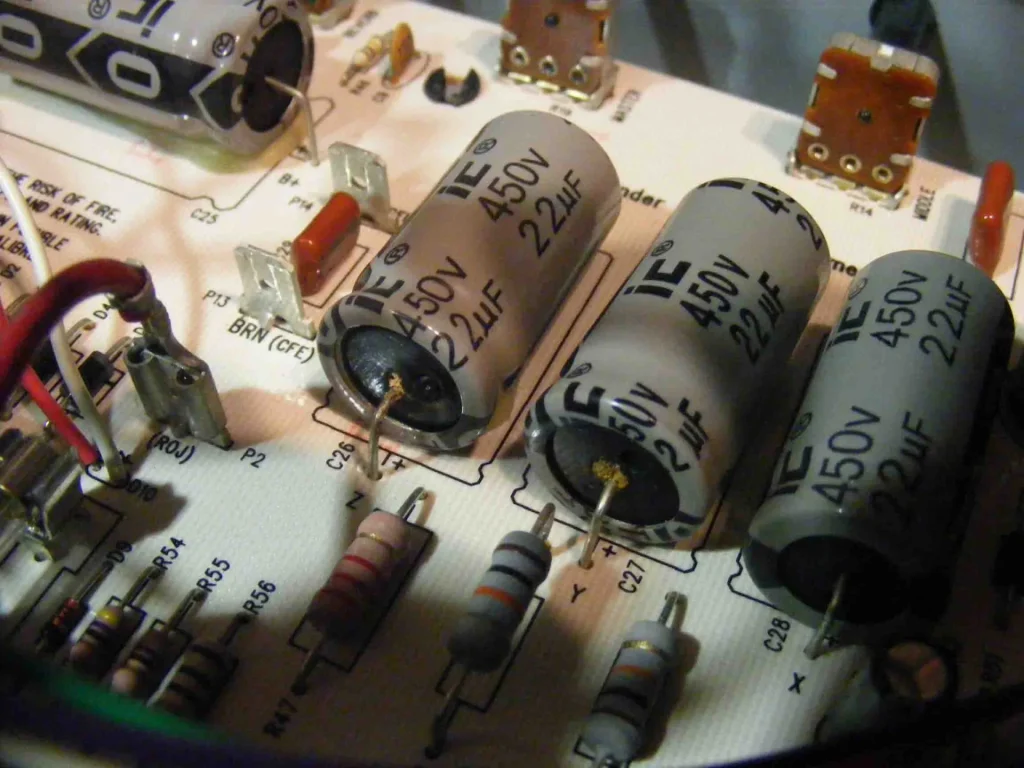

As you can see from the photo below (not my best effort with the camera) the filter caps in this amp had started to leak. This seems to be an unusually common problem on Fender amps from the mid nineties. Whether Fender got a bad batch of caps, I don’t know.

Regardless, Illinois Caps (IC) don’t have the best reputation, so if I need to change any of the filter caps I change all of them. I like to use German-made F&T caps for this.

FenderBJ5

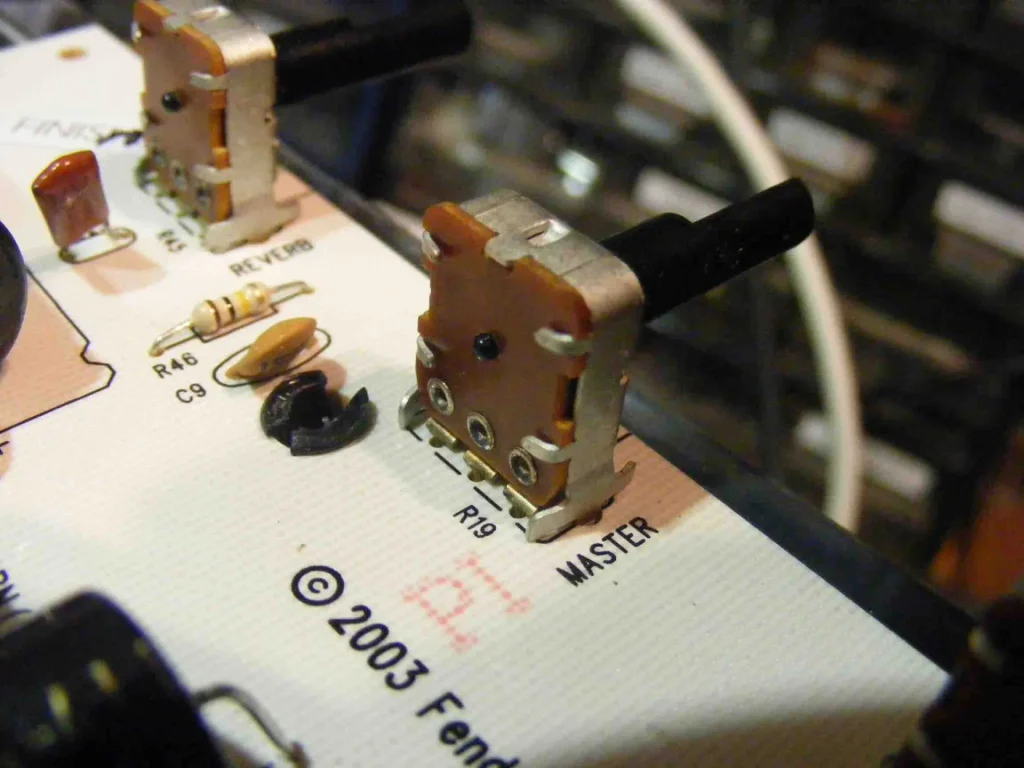

The pots get easily damaged on the Blues Junior. Often the tabs work loose on the back of the pots, so I always bend these back in with some pliers.

FenderBJ3

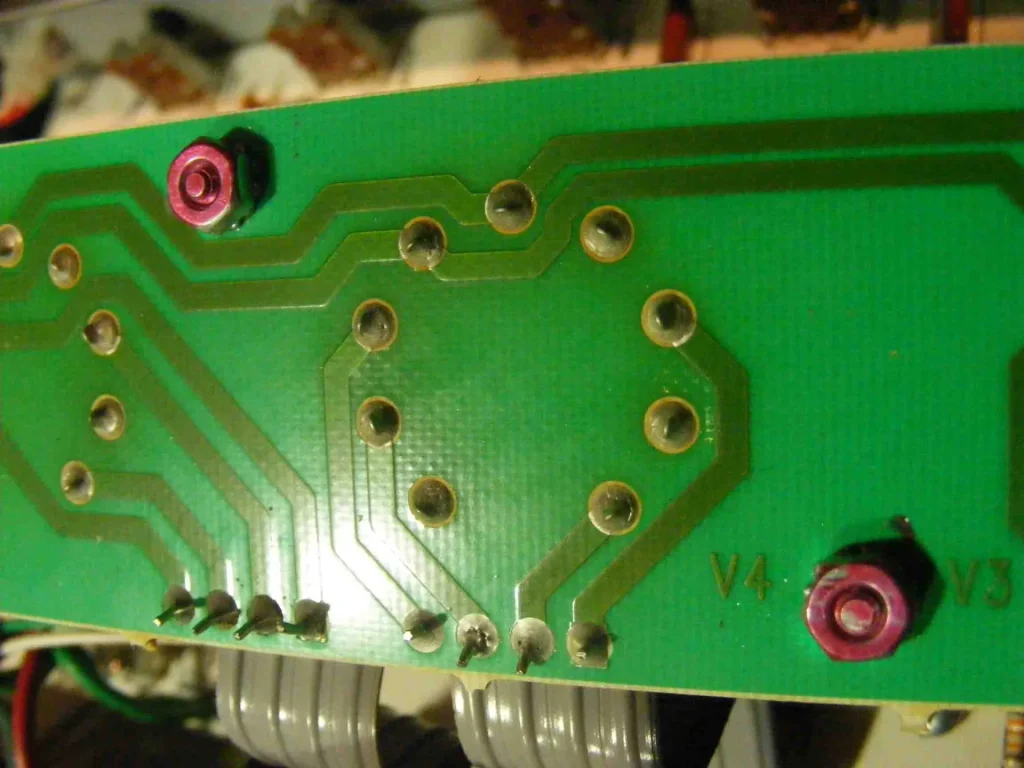

Finally the heat from the power valves often causes damage to the solder joints on the sockets for these valves.  There is also a dry joint on the ribbon cable from the main PCB. I resoldered all of these.

FenderBJ1

A pair of new valves and adjusting the lead dress to eliminate oscillation, another common problem with the Blues Junior and the amp was repaired.

This entry was posted in Amp repair, Guitar Amps. Bookmark the permalink. Post a comment or leave a trackback: Trackback URL.

3 Comments

  1. Chris
    Posted October 17, 2013 at 19:34 | Permalink

    Really helpful information! Are there many issues that arise with the ribbon cable? Interference with the valve heating cables etc?
    Thanks

  2. Posted November 11, 2013 at 20:56 | Permalink

    There aren’t any other issues with the ribbon cables that I am aware of.

  3. Lou S
    Posted December 30, 2013 at 21:52 | Permalink

    Good call on replacing IC caps. They’re known in the electronics industry as ‘low end caps.’ They do not manufacture their own parts; rather subcontract out to the lowest bidder. Surprised Fender sourced them in the first place.
